stainless steel welding wire

Gas-shield Er430 Stainless Steel Solid Welding Wire ER308L ER316L ER309L ER308LSi Er309lsi MIG China

instruction:

The main component of the welding wire is 17Cr, which is a ferritic stainless steel MIG welding wire, which can be welded in all positions. Excellent welding workability - smooth wire feeding, stable arc, beautiful shape and very little spatter. Premium Stainless Steel MIG & TIG Wire. Our ER308LSi is a premium stainless steel gas‑shielded solid wire designed for welding 304, 304L, and 308 stainless steels. The "Si" (Silicon) addition improves wetting and bead appearance.

use:

It is often used in the welding of wear-resistant and corrosion-resistant components, such as 10Cr17 (SUS 430) materials, guardrails, golf heads, dairy & food processing equipment, chemical storage tanks, exhaust manifolds, architectural structures etc.

Comply with GB/T 29713 S430

YB/T 5092 H10Cr17

AWS A5.9 ER430

ISO 14343-A-G 17

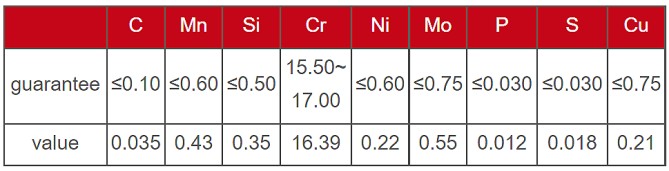

chemical composition(%):

Reference current  (DC+):

diameter φ0.8 mm Welding current 70~150(A)

diameter φ1.0 mm Welding current 100~200(A)

diameter φ1.2 mm Welding current 140~220(A)

Precautions:

1. Shielding gas: Pay attention to the purity of the shielding gas, and the recommended gas mixture ratio is Ar+1~3%O2.

2. Gas flow: 20~25L/min.

3. Dry extension length: 15~25mm.

4. Really remove the rust layer, moisture, oil, dust, etc. on the welding part.

5. During outdoor welding, when the wind speed is greater than 1.5m/s, windproof measures should be taken, and appropriate windproof measures must be taken to prevent the occurrence of blowholes.

Key attributes:

diameter: 0.8mm-2.0mm

flux content: standard

material: stainless steel

melting point: standard

customized support: OEM, ODM

weight: 5kg-20kg

place of origin: Hebei, China

model number: er430 ER308LSi er309lsi

brand name: Naidi

application: Pressure Vessel

warranty: 3 years

Product name: er430 stainless steel welding wire ER308L ER316L ER309L ER308LSi er309lsi MIG welding wire

Material: Stainless Steel

Welding Process: Gas Shielding Arc

Type: Manufacturer

Shield gas: Ar+1~5%CO2

OEM: Accept OEM Packing

Feature: Little Splash

Packing: 1kg/5kg/15kg/20kg

Quality: High Qality

Color: White

Packaging and delivery:

Packaging Details: 1mig 15kg/20kg/spool 2drum :250/350kg 1ton=1pallet

Port of dispatch: Qingdao, Tianjin

Selling Units: Single item

Single package size: 36X17X17 cm

Single gross weight: 15.000 kg

Supply capacity:

Supply Ability: 1000 tonnes per Month

Lead time:

Quantity 1 - 500 kilograms Lead time 7 days

Quantity > 500 kilograms Lead time To be negotiated

Customization options:

Customized logo (Min. order: 1,000 kilograms)

Customized packaging (Min. order: 1,000 kilograms)

Graphic customization (Min. order: 1,000 kilograms)

FAQ

Q: are your trading company or manufacturer?

A:we are factory

Q:how long is your delivery time:

A:Generally it's 7-15 days if the goods are in stock,or it's 15-20days if goods are not in stock,it depends on quantity.

Q:Do you provide free sample?it's free or extra?

A:yes,we offer free sample,but don't pay the cost of freight.

Q:what is your payment term?

A:payment<=1000usd,100% in="" advance.payment="">1000usd ,30%TT in advance,balance before shippment.
